- Product Name:

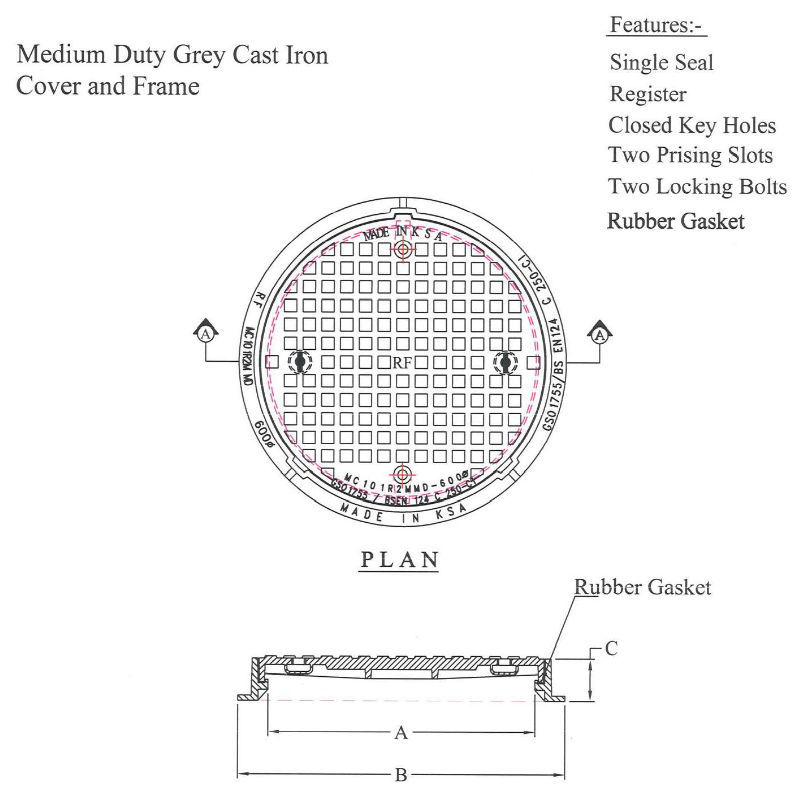

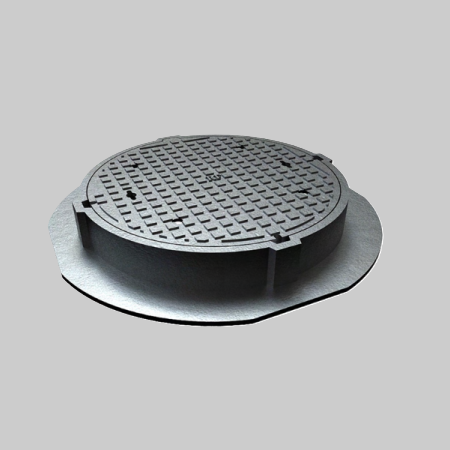

Medium Duty Grey Cast Iron Circular Cover and Frame - Product Code:
MC-101 R2 M MD – 25 TON - Dimensions:
Clear Opening: 600 mm Ø – Over Base: 735 mm Ø – Depth: 100 mm - Material Type & Specification:
Manufactured from Ductile Iron, in full compliance with ASTM A-536 - Product Features:
• Single Seal: Provides effective sealing against external elements.
• Register: Ensures precise fit and alignment.
• Closed Key Holes: Prevent debris entry and enhance safety.
• Two Prising Slots: Allow easy lifting or removal of the cover.
• Two Locking Bolts: For added security and tamper resistance.
• Rubber Gasket: Ensures a watertight seal to prevent ingress of water or debris.
• Markings: Provided in both Arabic and English as per project requirements. - Load Rating & Specification:
Designed to withstand a load of 25 Tons, in accordance with BSEN 124, Class C-250, suitable for medium-duty applications such as sidewalks and parking areas. - Protective Coating:
- Black Bitumen Coating (Standard) – for basic protection against corrosion.
- Coal Tar Epoxy Coating (Optional) – for enhanced corrosion resistance in harsh environments.
