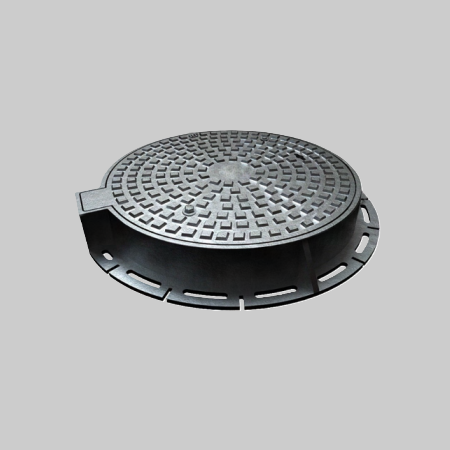

- Product Name: Heavy Duty Ductile Iron Circular Hinged Cover and Frame
- Product Code: MC – 106 DI AR1 N (HD)

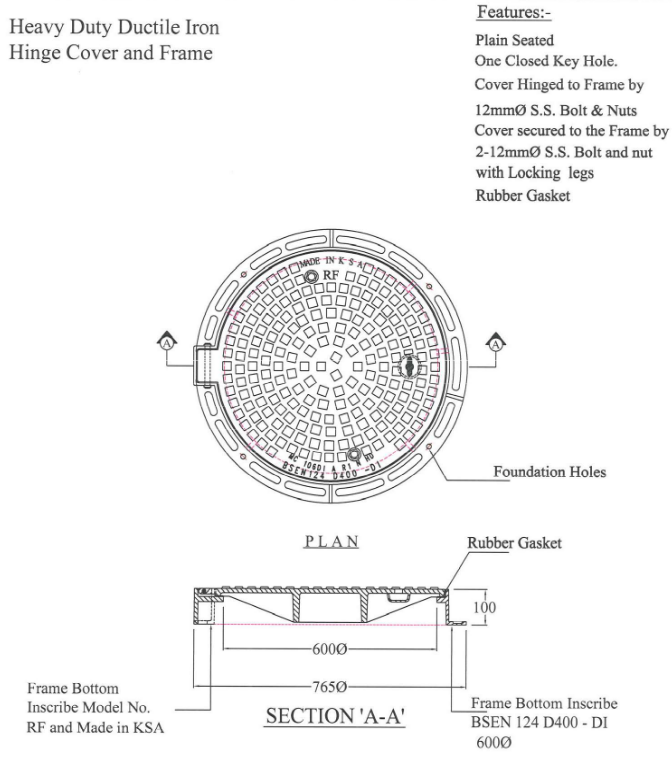

- Dimensions: Clear Opening: 600 mm Ø – Over Base Dimension: 765 mm Ø – Depth: 100 mm
Material Type & Specification:
- Manufactured from Ductile Iron, in full compliance with ASTM A 536 standard.
Product Features:
- Plain Seated: Smooth seating surface for secure and stable placement.
- One closed Key Hole: Designed for easy opening and closing using a key tool.
- Cover Hinged to Frame by 12mm Ø. S.S. BOLT & NUTS with Locking Legs: offering improved safety, security, durability, and ease of maintenance & added security and tamper resistance
- Rubber Gasek Ensures a watertight seal to prevent leaks and ingress of debris or water.
- Foundation Holes: securely anchored to a concrete base or foundation and improves stability.
Load Rating & Specification:
- Designed to withstand a load of 40 Tons, in accordance with BSEN 124, Class D-400, suitable for heavy-duty applications such as roads and highways.
Protective Coating:
- Black Bitumen Coating (Standard) – for basic protection against corrosion.
- Coal Tar Epoxy Coating (Optional) – for enhanced corrosion resistance in harsh environments.
