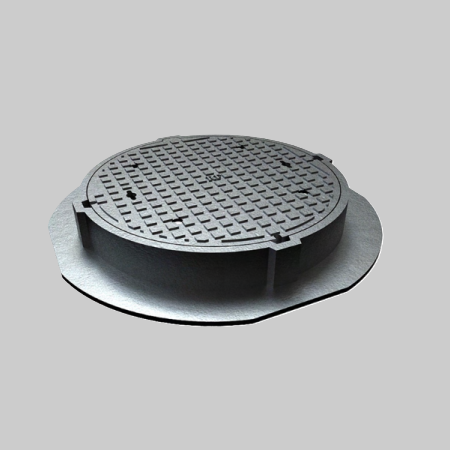

- Product Name: Heavy Duty Grey Cast Iron Circular Cover and Frame
- Product Code: MC – 110 (HD)

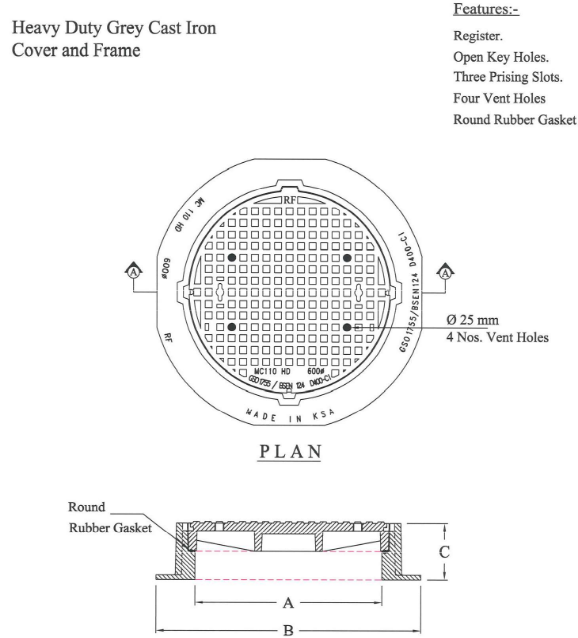

- Dimensions: Clear Opening: 600 (Ø) mm – Over Base Dimension: 850 (Ø) mm – Depth: 180 mm
- Material Type & Specification:
Manufactured from Grey Cast Iron, in full compliance with ASTM A-48 standard. - Product Features:
- Integrated register for secure fitting.
- Open key holes for ease of handling and installation.
- Three prising slots for safe cover removal during maintenance.
- Four vent holes to allow gas release and prevent pressure build-up.
- Round rubber gasket for watertight sealing.
- Markings provided in both Arabic and English as required.
- Load Rating & Specification:
Designed to withstand a load of 40 Tons, in accordance with BSEN 124, Class D-400, suitable for heavy-duty applications such as roads and highways. - Protective Coating:
- Black Bitumen Coating (Standard).
- Coal Tar Epoxy (Optional) for enhanced corrosion resistance.
