FD 400

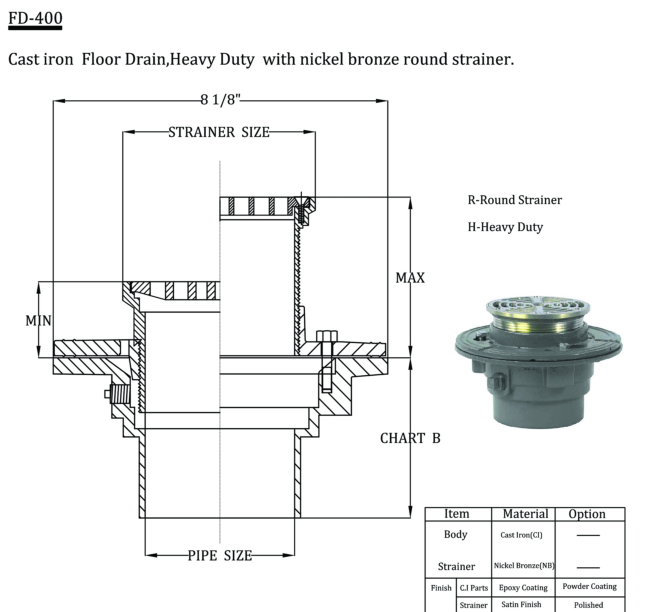

Drainage Products FD-400 cast iron floor drain with nickel bronze round strainer

المستندات

Chart A
Catalogue Number	Outlet Size	Str. Size	Str. Size Min – Max .	Strainer
FD-400-R5	2, 3, 4″	5″	13/16″ – 3-1/4″	nickel bronze
FD-400-R6	2, 3, 4″	6″	7/8″ – 3-3/8″	nickel bronze
FD-400-R7	2, 3, 4″	7″	11/16″ – 3-1/4″	nickel bronze
FD-400-R8	2, 3, 4″	8″	7/8″ – 3-1/4″	nickel bronze
FD-400-R10	2, 3, 4″	10″	1-1/4″ – 3-1/4″	nickel bronze

Chart B
Pipe Size	No Hub	Push On	Female Thread	Inside Chusk	PVS / ABS
2″	3-5/8″	4-1/4″	4-1/4″	4-1/2″	4″
3″	3-5/8″	4-1/4″	4-1/4″	4-1/2″	4″
4″	3-5/8″	4-1/4″	4-1/4″	4-1/2″	4″
6″	3-1/2″	—	—	—	—
